custom parts for assembly of LCD monitors ZJ050NA-08C LCD Screen 5 inch 640x480 display panel HDMI VGA AV LCD Control Board Monitor Panel
-
Estimated Delivery:Jul 31 - Aug 04
-
Shipping costs are additional and your responsibility
custom parts for assembly of LCD monitors ZJ050NA-08C LCD Screen 5 inch 640x480 display panel HDMI VGA AV LCD Control Board Monitor Panel

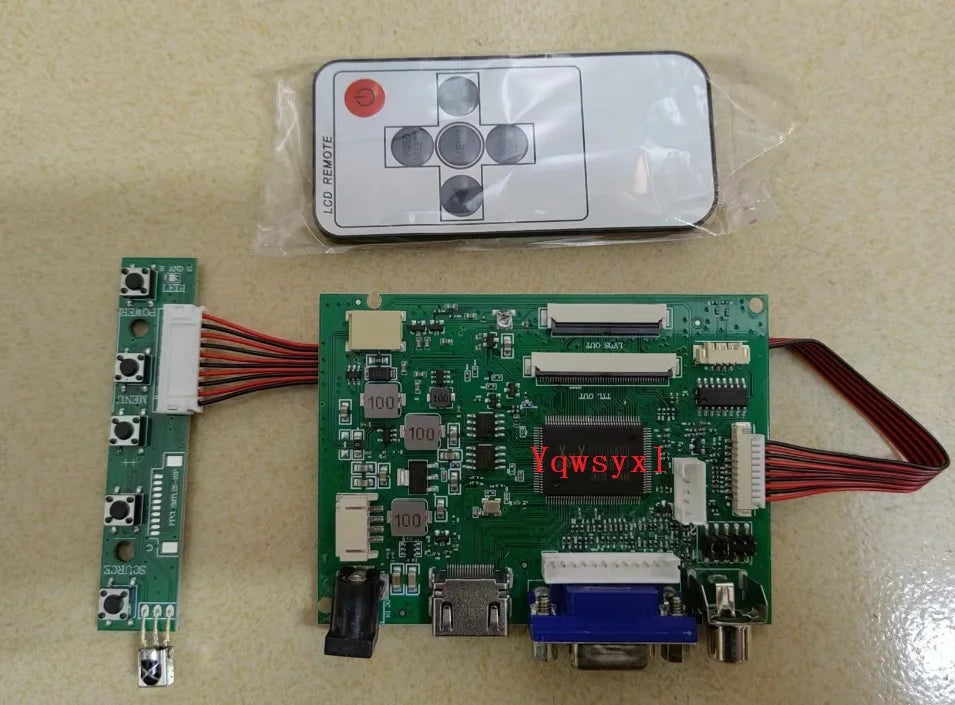

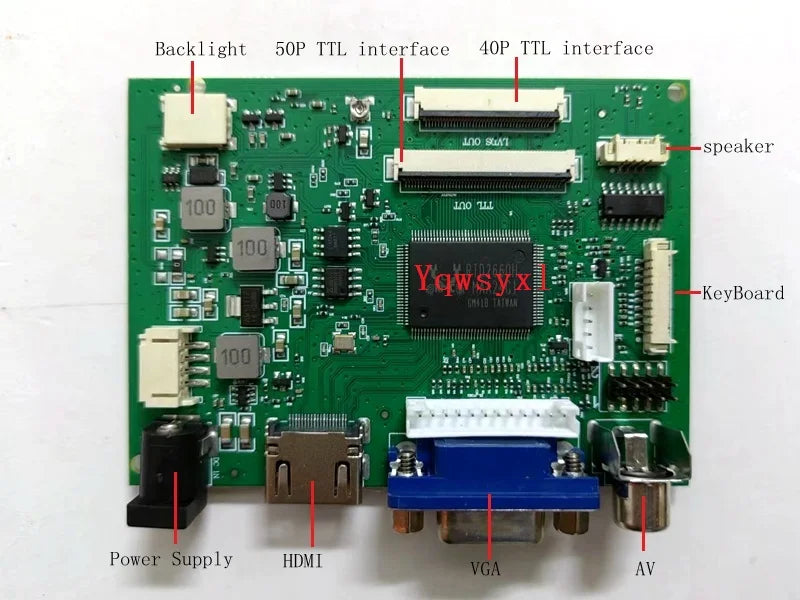

LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: SupportAutomatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language:English French German Spanish Italian And So On

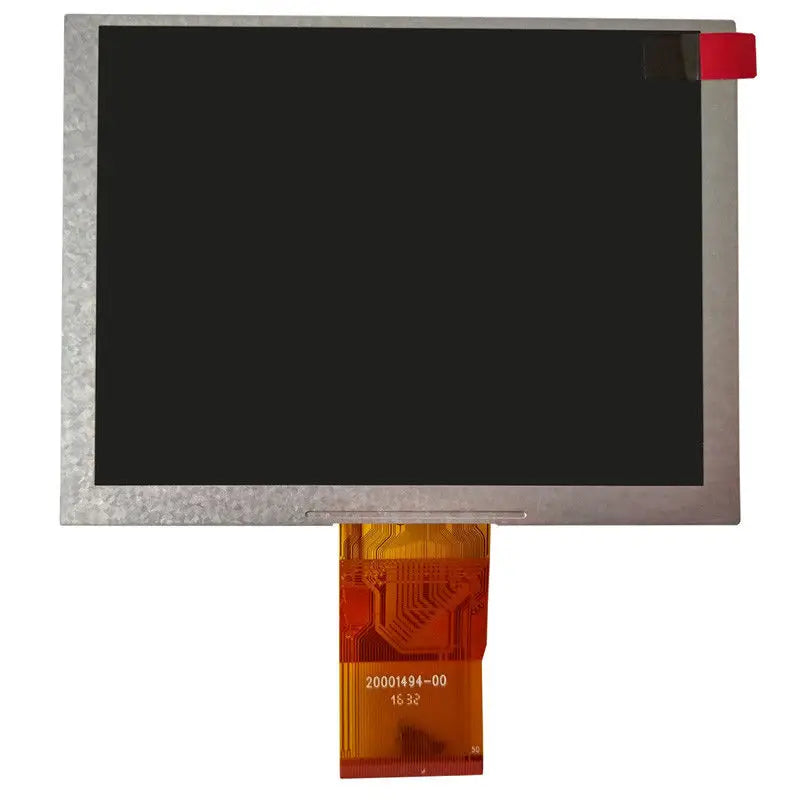

Display Mode TN, Normally White, Transmissive
Resolution 640（RGB)×480
Outline Size 117.65 × 88.43×5.9 (H×V×D)
Display Area 101.76 × 76.32 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 50 pins Parallel RGB (1 ch, 8-bit) , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)
