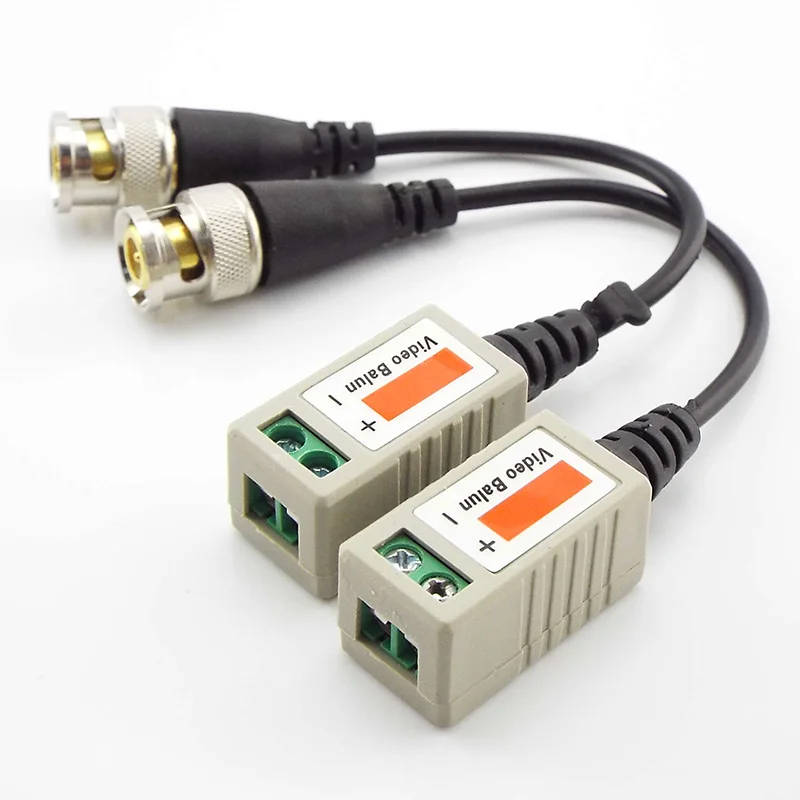

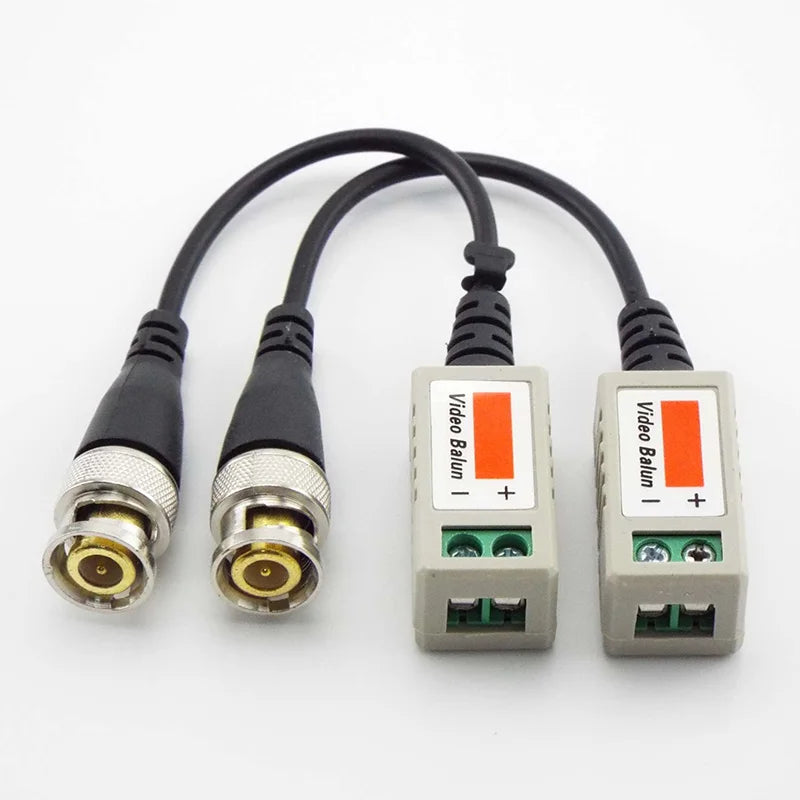

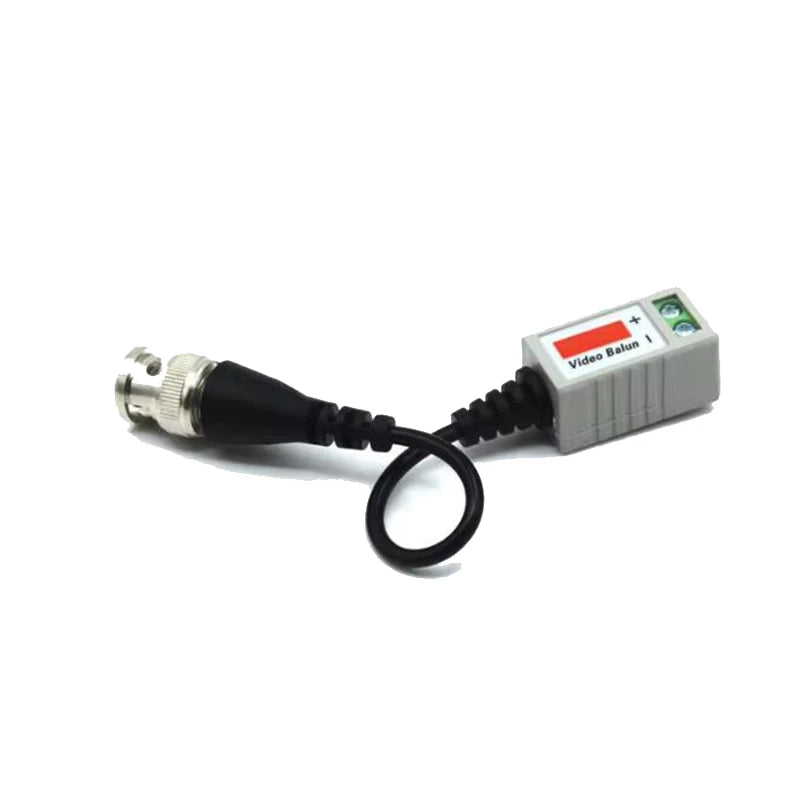

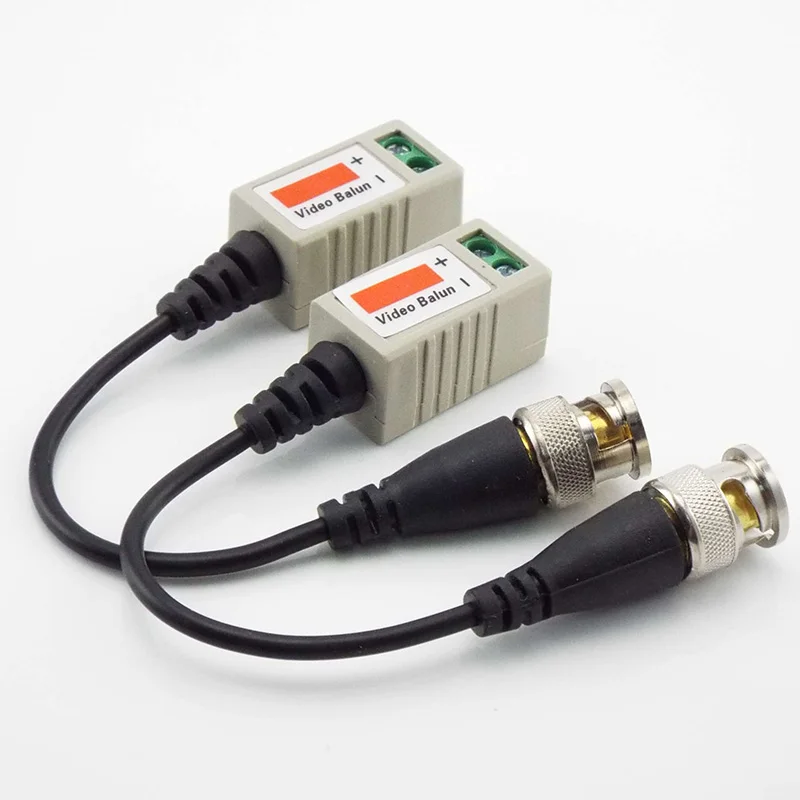

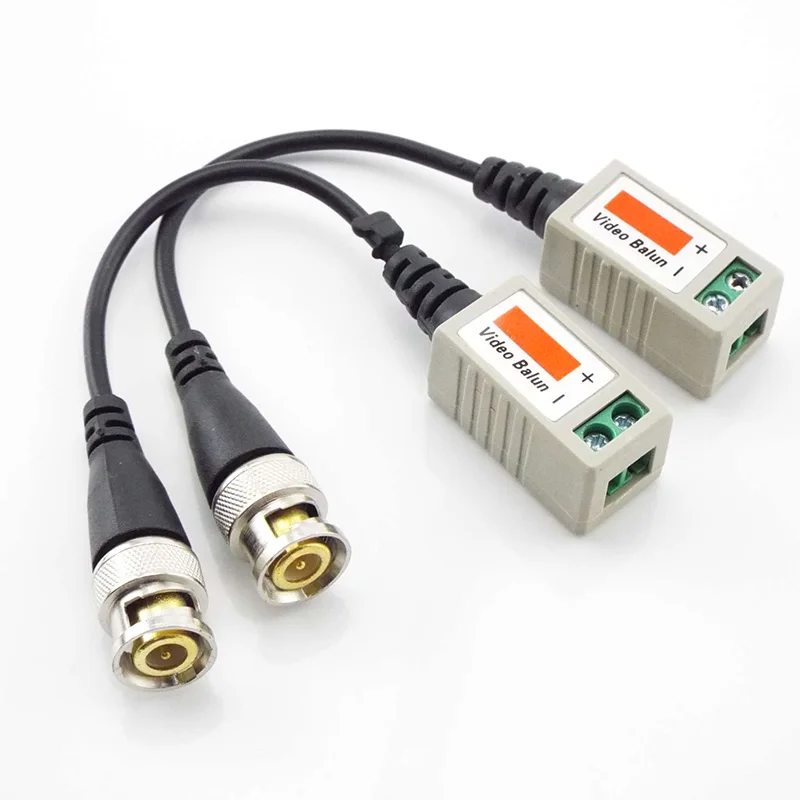

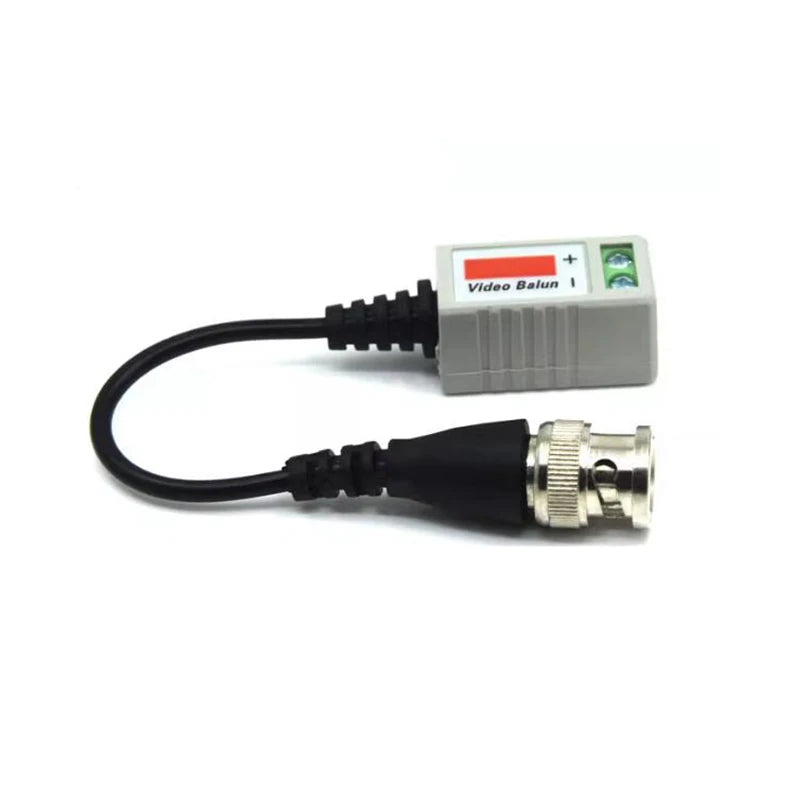

VIDEO BALUN MATERIA 1pair BNC Video Balun Connector Passive Transceiver 3000FT Distance UTP Balun Male BNC CAT5 Cable For CCTV Camera Accessories

1pair BNC Video Balun Connector Passive Transceiver 3000FT Distance UTP Balun Male BNC CAT5 Cable For CCTV Camera Accessories

Input level: 1Vpp/75Ω full TV signal, terminal connection

Bandwidth: 0～10MHZ/3dB

Differential Gain: <2%

Differential phase: ＜2%

Signal-to-noise ratio (weighted): 60dB

Common mode rejection ratio: 60dB@0～10MHZ

Cable requirements: unshielded twisted pair 24-16AWG Category 5 or Category 5 or above (CAT-5/5E/6 UPT)

Cable grade: Category 5 or above, recommended use of ultra Category 5

Transmission distance: ≤ 350 meters (color)

Frequency Response: 0-10MHz

Impedance: 100±20 ohm

DC Loop Resistance: ≤18Ω/100m@AWG24 (Recommended: 30Ω/305m)

Distribution capacitance: <62PF/meter

Operating Temperature: -30℃～85

Storage Temperature: -40℃～85℃

Relative humidity: 0～95% (non-condensing)

Color system: NTSC PAL SECAM CCIR

Power supply: None

Features:

● Power supply: without auxiliary power supply

● Transmission effect: real-time transmission of PAL, NTSC, SECAM video signals, clear and stable video;

● Transmission distance: 0 to 300 meters (with passive transmitter), 0 to 1500 meters (with active receiver);

● Main function: using a set of twisted pair 2-core wire to transmit a single video signal;

● A network cable 8-core, both can transmit 4 groups of video signals, saving most of the power cable of the project;

● Protection against interference: plug and play, no need for debugging, with two sets of filters, excellent lightning protection module, anti-static and anti-interference capabilities;

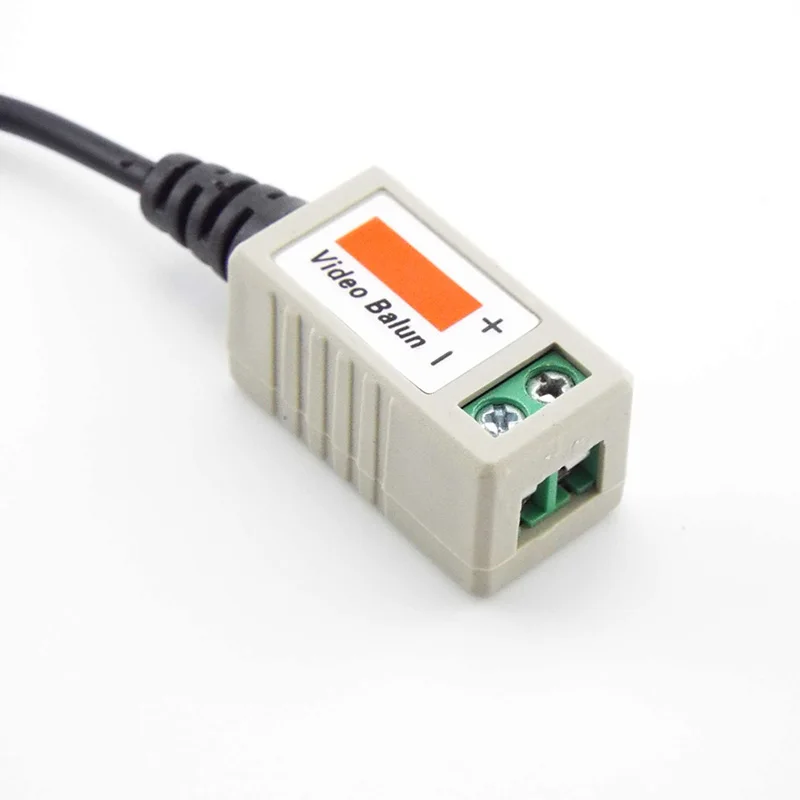

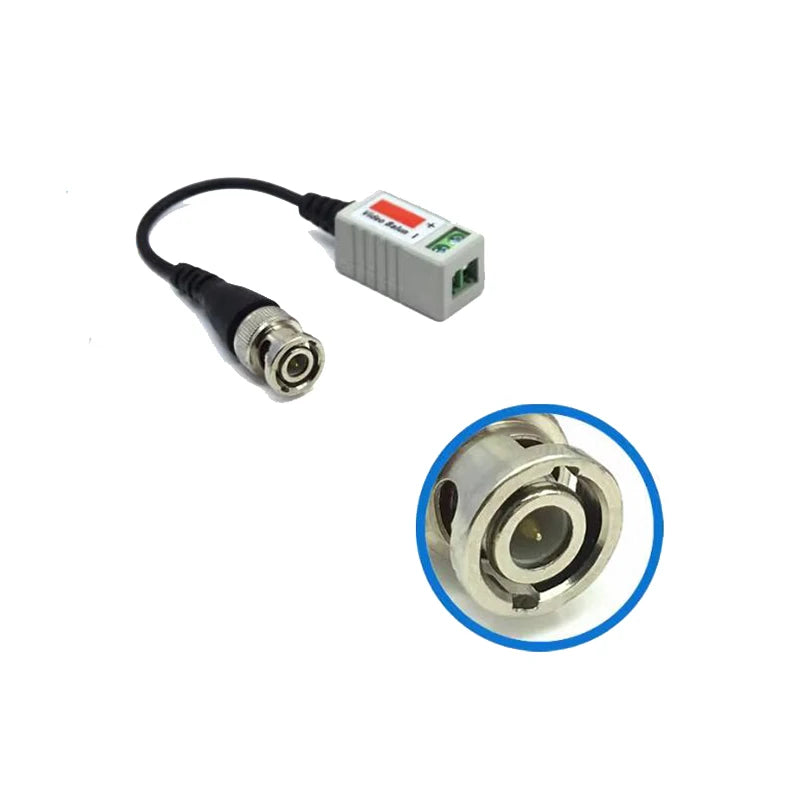

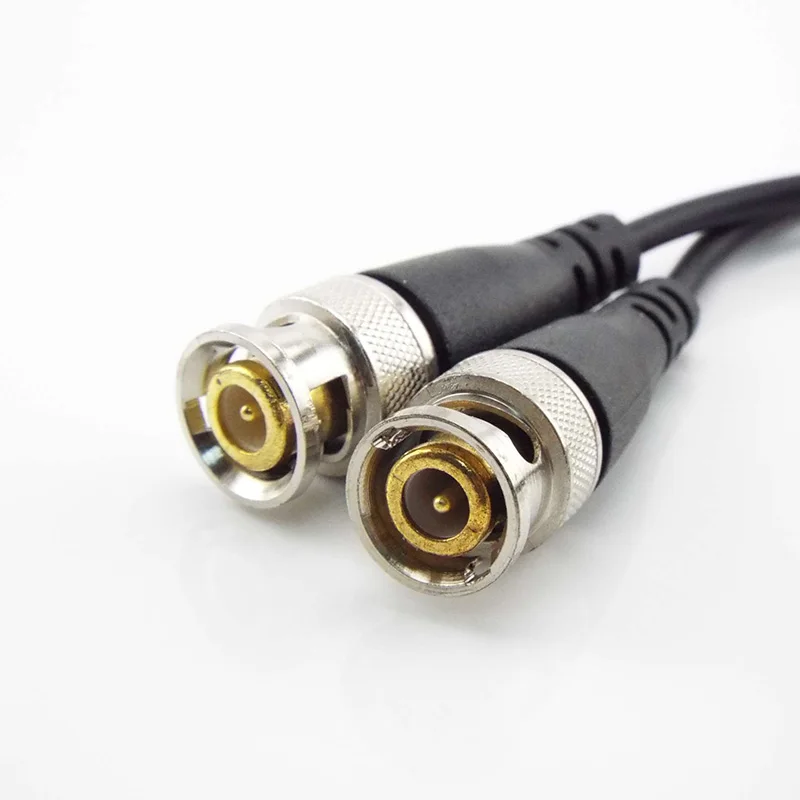

● Appearance structure: metric BNC coaxial interface, screw pressure piece terminal, no need to weld, save wiring time.

● Operating temperature up to 60 ℃, a pair of weight: 50g

● Signal transmission bandwidth: 0~6MHz

● Anti-interference: >60dB

● Protection level: 2000V

Product Description:

 * Passive twisted pair video transmission equipment, both for sending and receiving, without the need to provide power supply, transmission distance of 300 meters color images, 600 meters black and white images (camera to monitor);

 * Built-in power supply, magnetic field, pulse, electric field, ground potential difference interference elimination circuit, super interference suppression, ultra-low electromagnetic radiation, built-in surge protection;

 * Real-time transmission of monochrome or color PAL, NTSC, SECAM and other standards of the baseband video signal;

Fully compatible with all kinds of camcorders with twisted pair output function;

 * High-quality video transmission quality can be achieved with fiber-optic transmission effect, with the cost of network cable to achieve the effect of fiber optic;

 * in a Category V or more unshielded twisted-pair cable in four pairs of wires to take a pair of wires can be transmitted all the way to the signal,

four pairs of wires can be transmitted four video and data signals or a combination of signals and do not interfere with each other, and active reception with the use of 800 meters can be transmitted.

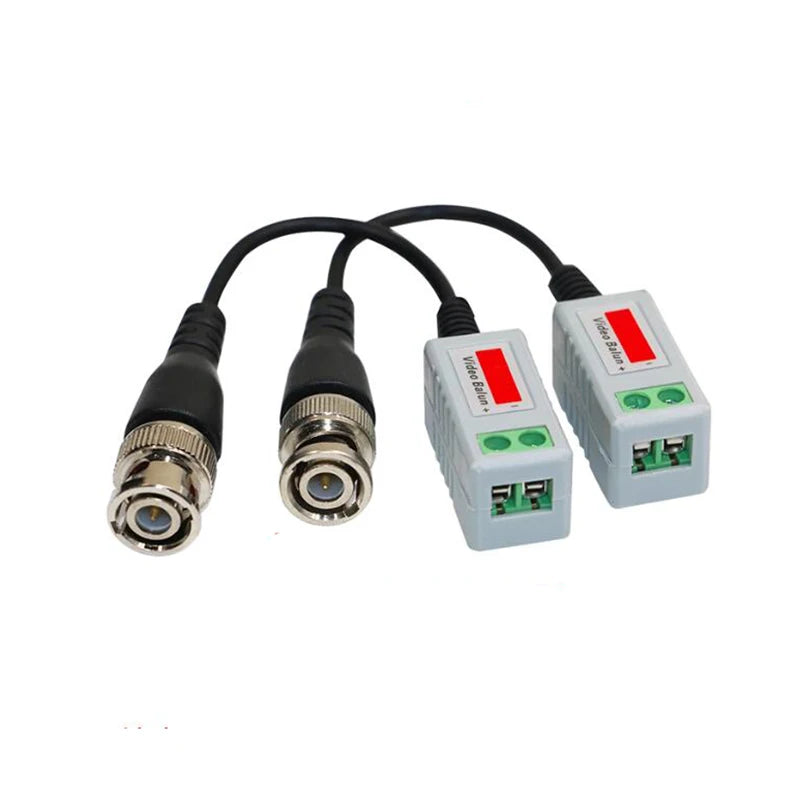

Package Includes: 1 pair (2 pcs)* CCTV video equalizer
