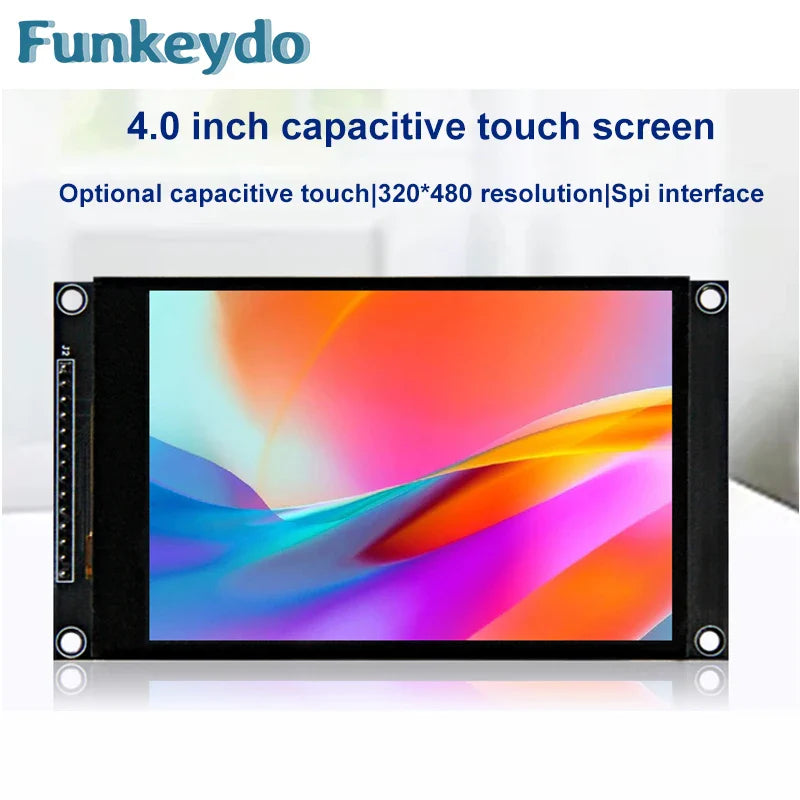

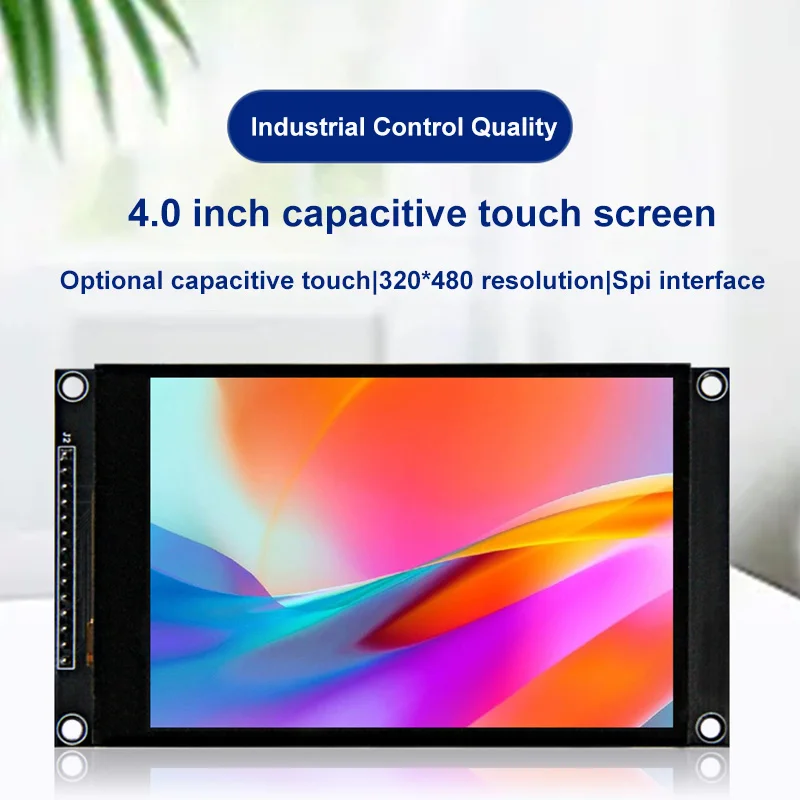

LCD display 6707RRX 4.0 inch 320X480 SPI Serial TFT LCD Display Optional Capacitive Touchscreen Module for ESP32/STM32/Arduino UNO&Mage2560/C51/CH32
-
Estimated Delivery:Jul 31 - Aug 04
-
Shipping costs are additional and your responsibility
LCD display 6707RRX 4.0 inch 320X480 SPI Serial TFT LCD Display Optional Capacitive Touchscreen Module for ESP32/STM32/Arduino UNO&Mage2560/C51/CH32
|
Name |
Parameter |
|
LCD Parameters |
|
|
Screen Size |
4.0 inch |
|
Screen Type |
TNIPS |
|
Resolution |
320xRGBx480 (pixels) |
|
Active Area (AA area) |
55.68(W)x83.52(H)(mm) |
|
Number of Colors(Max) |
16.7M |
|
Driver IC |
ST7796S |
|
Display Interface |
4-Line SPI |
|
Pixel Size |
0.174(H)x0.174(mm) |
|
View Angle |
12 O'CLOCK |
|
Brightness(TYP) |
300(cd/m2) |
|
Backlight Type |
White LED*8 |
|
Operation Temperature |
-10~50(℃) |
|
Storage Temperature |
-20~60(℃) |
|

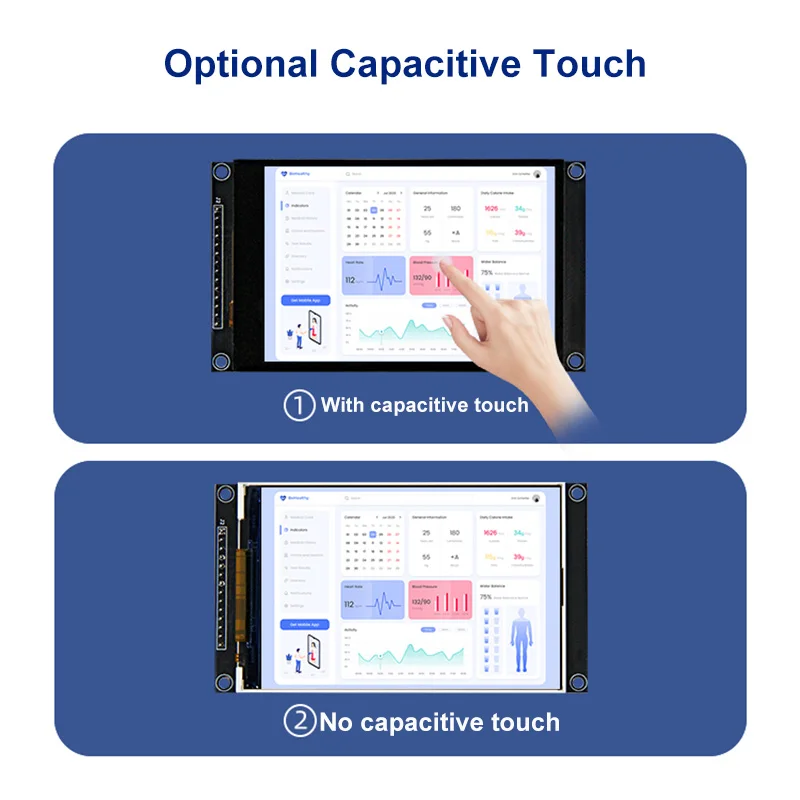

Touch Screen Parameters |
|
|
Touch Active Area |
4.0 inch |
|
Touch Screen Type |
Capacitive Touch Screen |
|
Touch Screen Resolution |
320x480(pixels) |
|
Driver IC |
FT6336U |
|
Touch Screen Visual Area |
55.98(W)x83.82(H)(mm) |
|
Communication Interface |
IIC |
|
Operation Temperature |
-20~70(℃) |
|
Storage Temperature |
-30~80(℃) |
|

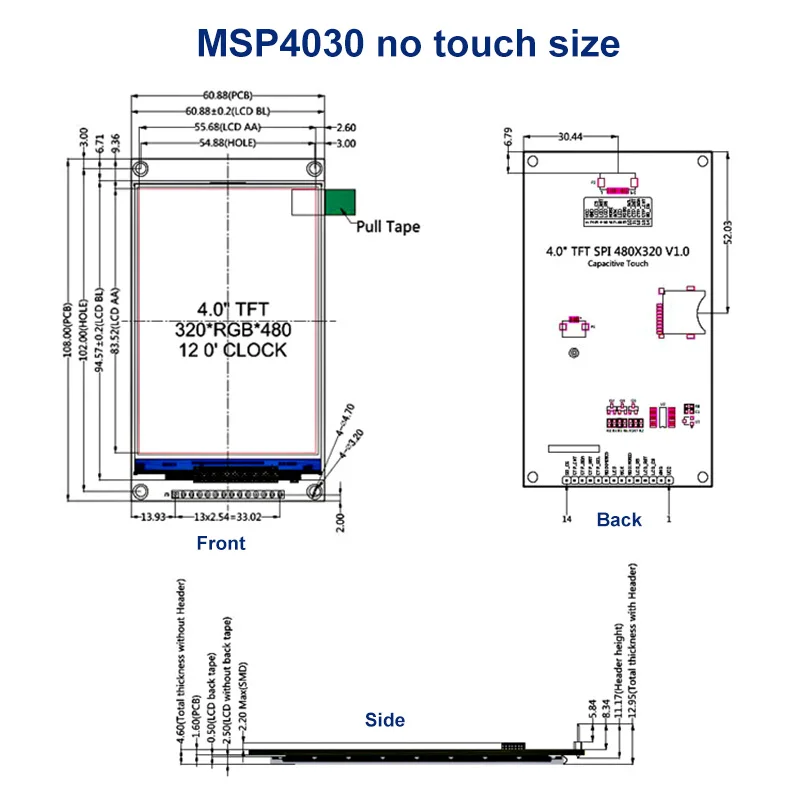

Size Parameters |
|
|
TFT Outline Size |
60.88±0.2(W)x94.57±0.2(H)x2.5±0.1(D)(mm)(Excluding cables and adhesive backing) |
|
Touch Screen Outline Size |
60.88±0.1(W)x94.57±0.1(H)x1.35 (D)(mm)(Excluding cables and adhesive backing) |
|

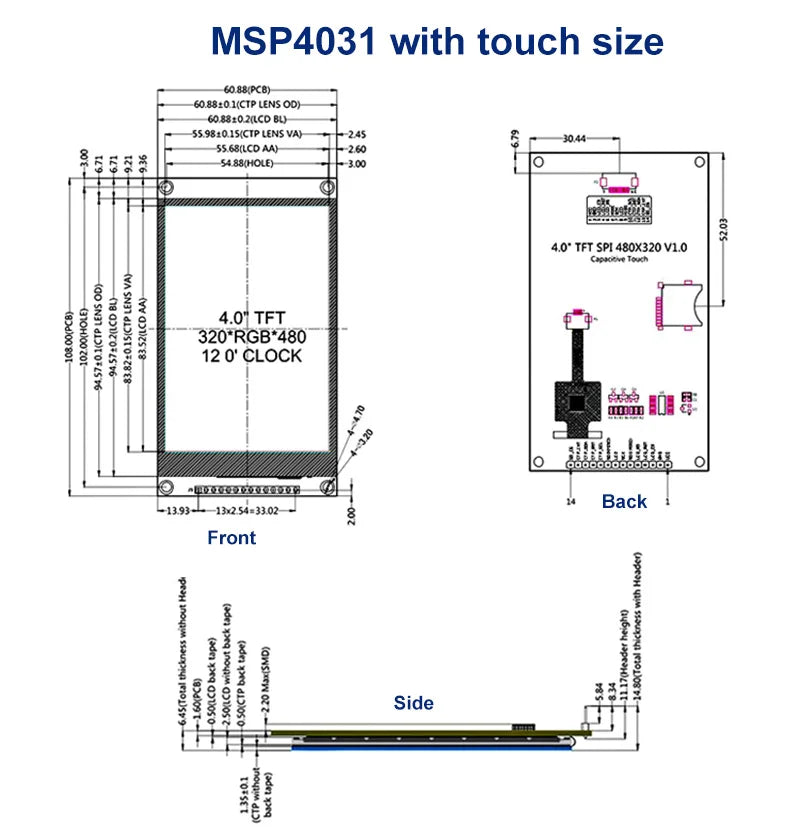

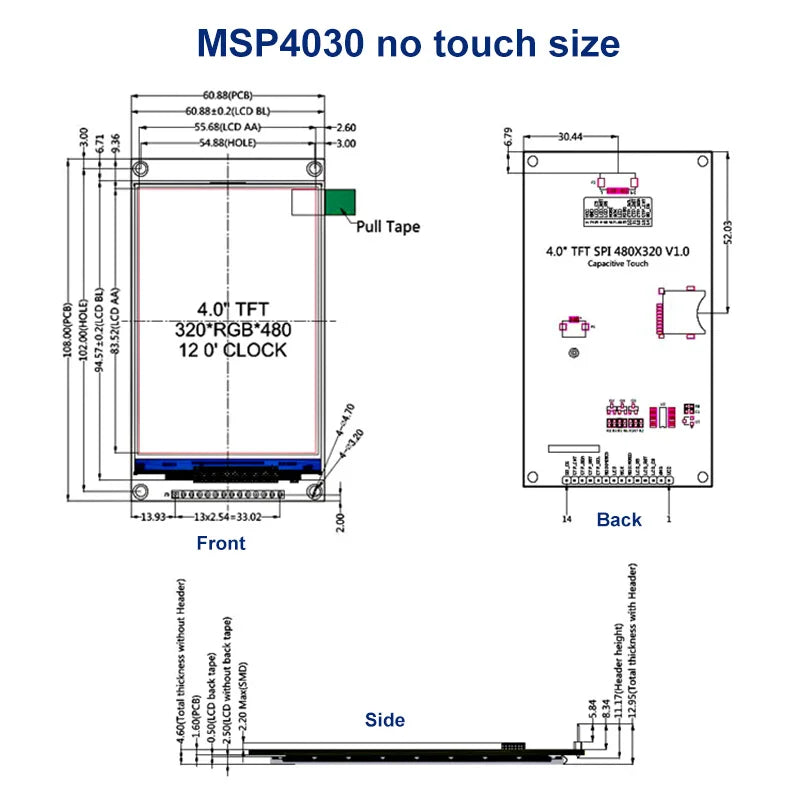

Module Outline Size |
Have Touch Screen:60.88(W)x108.0(H)x14.80(D)(mm)(including Pin Header)
NO Touch Screen:60.88(W)x108.0(H)x12.95(D)(mm)(including Pin Header) |
|
Electrical Parameters |
|
|
Working Voltage |

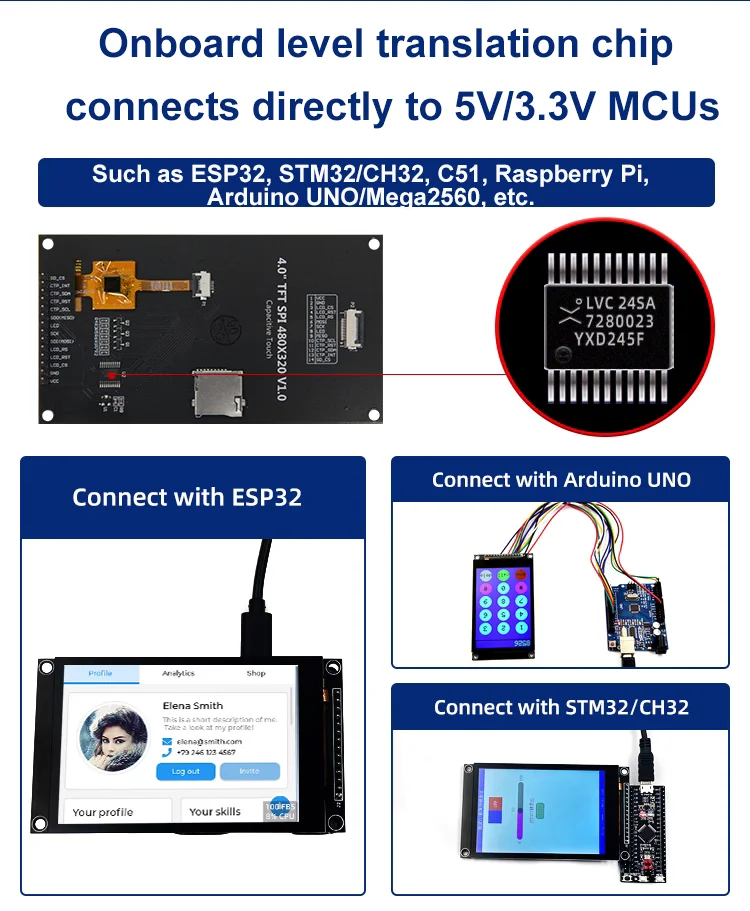

5.0 V/3.3V(Recommended to connect to 5V) |
|
Backlight Current |
103 mA |
|
Power |
0.5 W |
|
Other Parameters |
|
|
SKU |

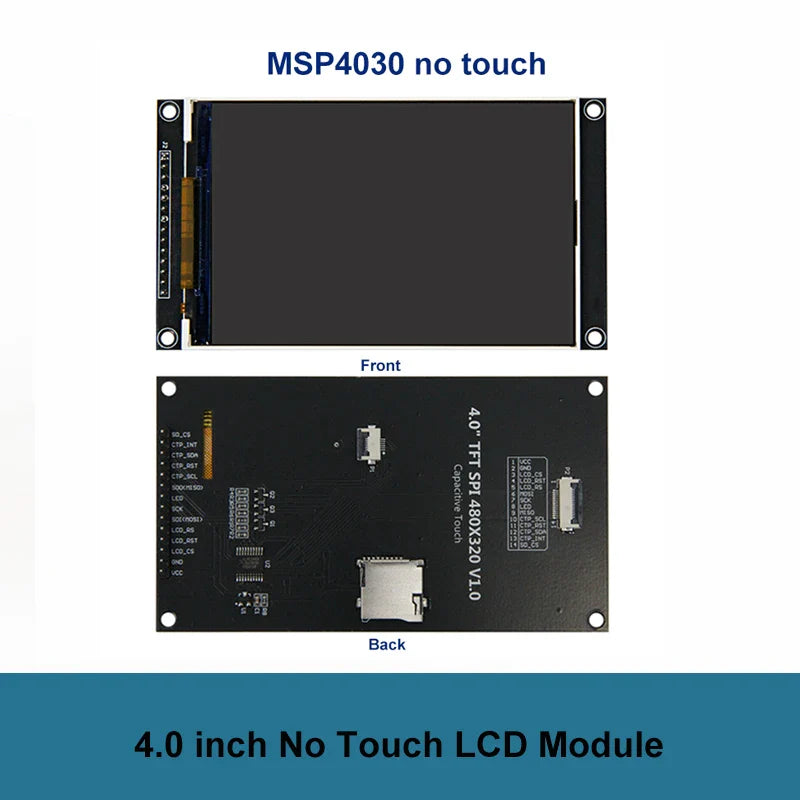

NO Touch Screen : MSP4030
Have Touch Screen : MSP4031 |
|

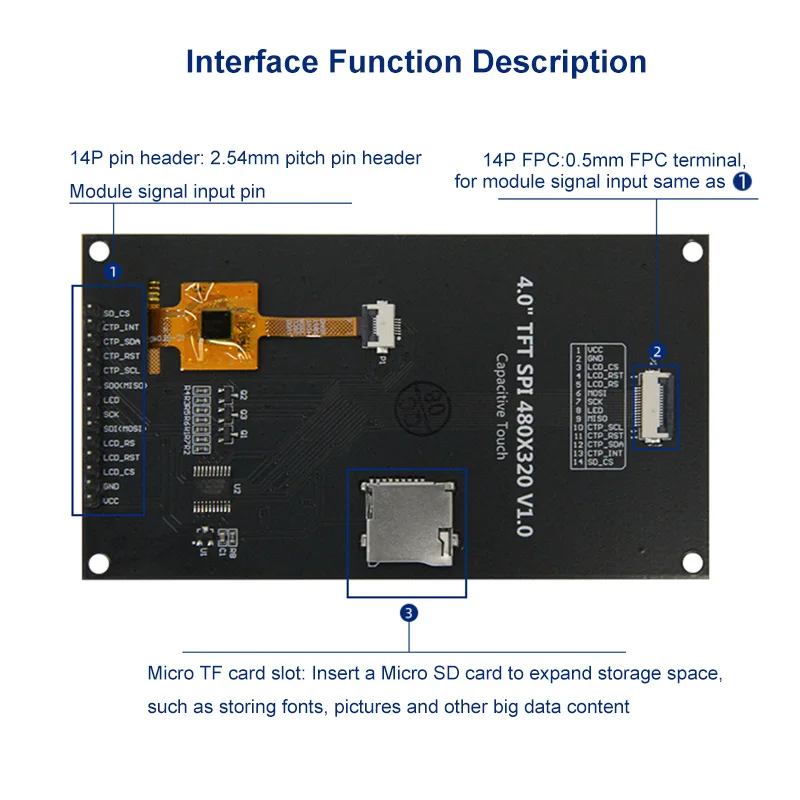

Interface |
14P 2.54mm spacing Header and 0.5mm spacing FPC seat |
|
Weight(including package) |
MSP4030: 58g
MSP4031: 76g |
