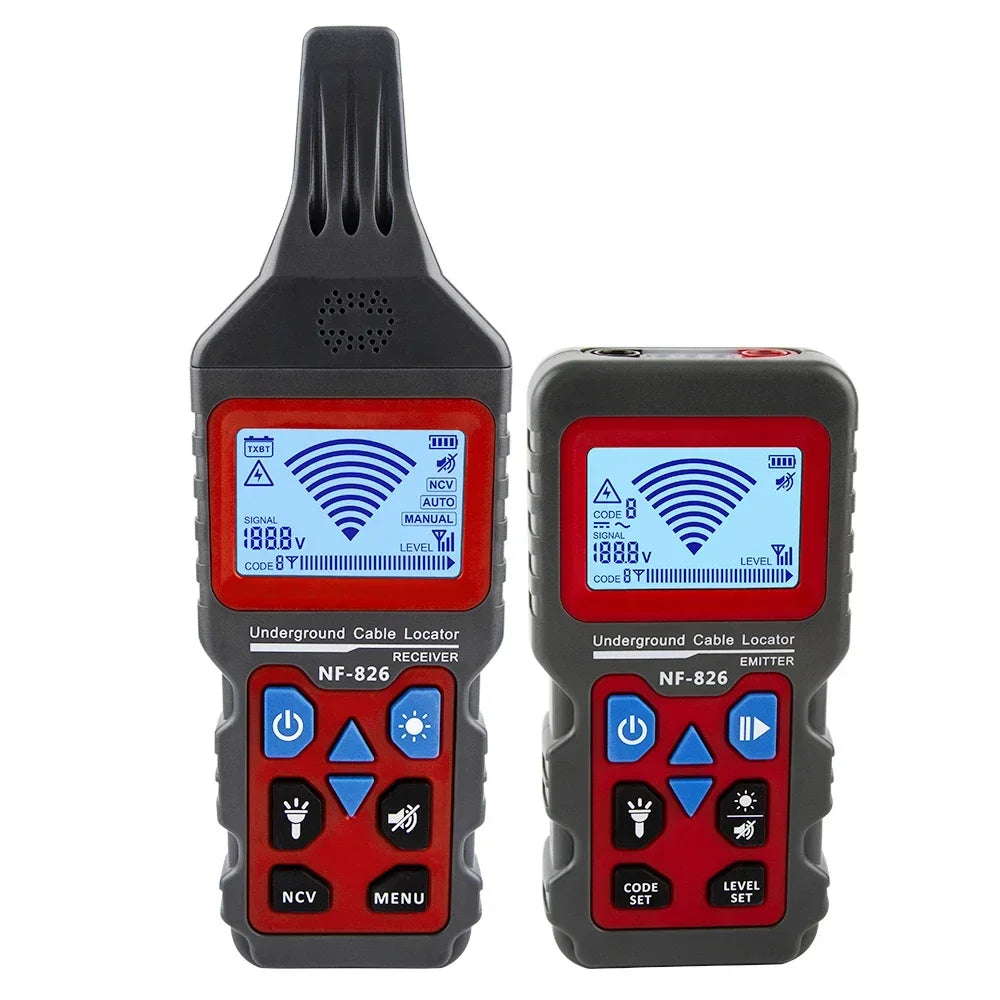

Electrical Measuring Equipment NOYAFA NF-826 Underground Cable Tester Locator Wire Tracker Detection Wall Electrical Lines Water and Gas Supply Pipeline Path
Regular price
$184.05
Sale price
$184.05
Regular price
$184.05
Unit price
NF-826
16 people are viewing this right now
sold in last hours
-
Estimated Delivery:Jul 31 - Aug 04
-
Shipping costs are additional and your responsibility

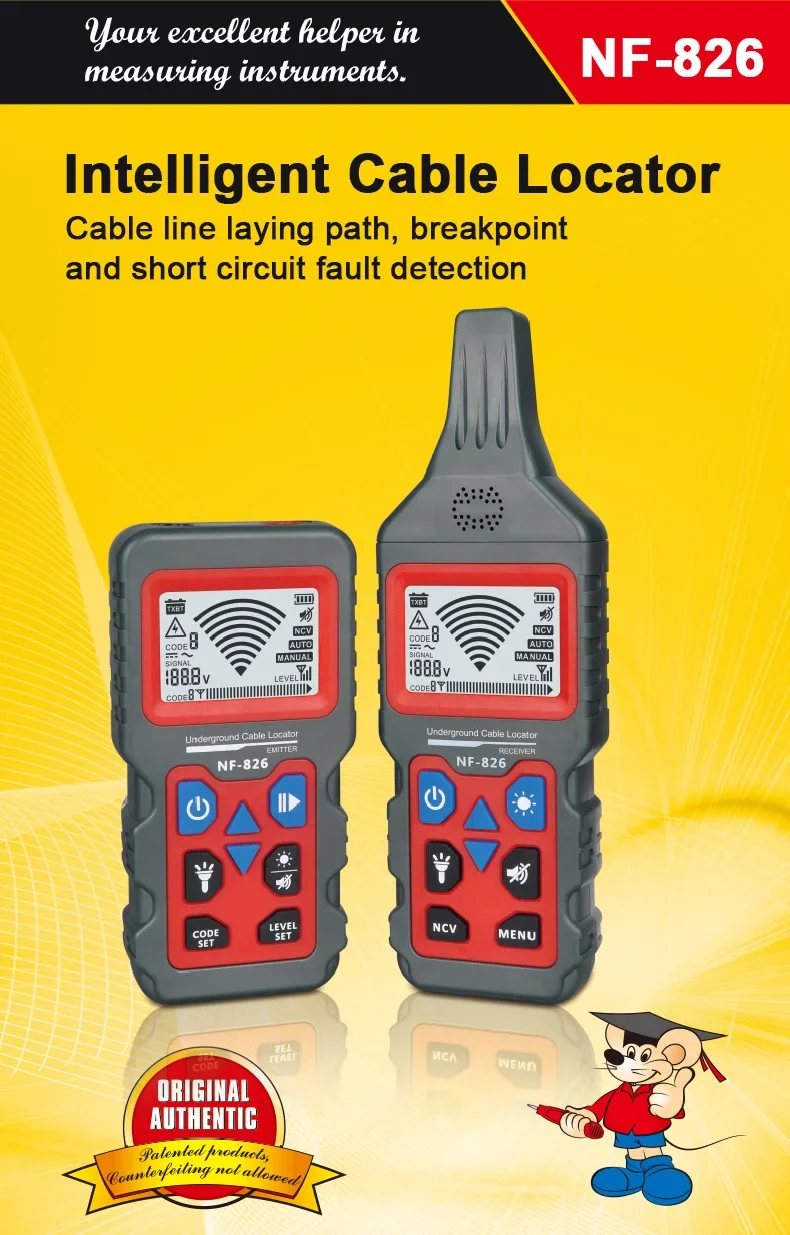

Electrical Measuring Equipment NOYAFA NF-826 Underground Cable Tester Locator Wire Tracker Detection Wall Electrical Lines Water and Gas Supply Pipeline Path
Product description
Shipping & Return
Functions:

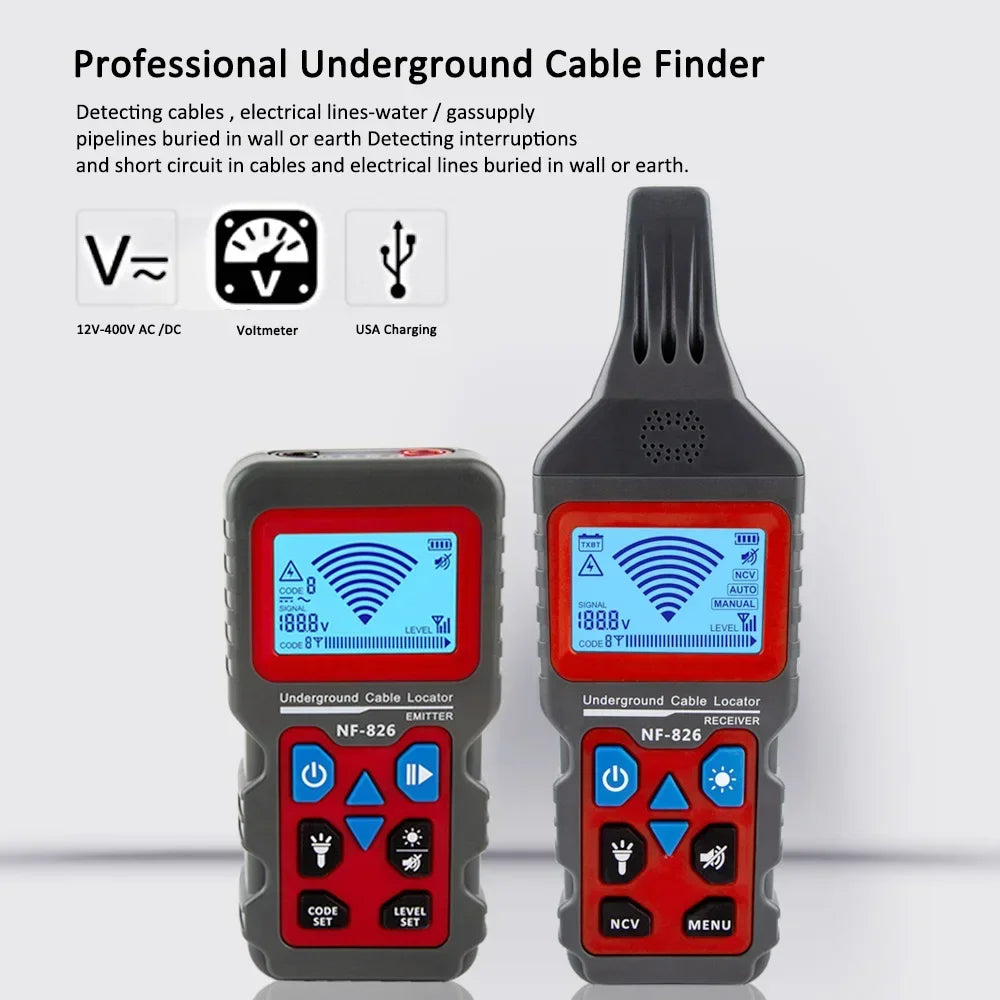

Detecting cables, electrical lines-water/gas supply pipelines buried in wall or earth
Detecting interruptions and short circuit in cables and electrical lines buried in wall or earth

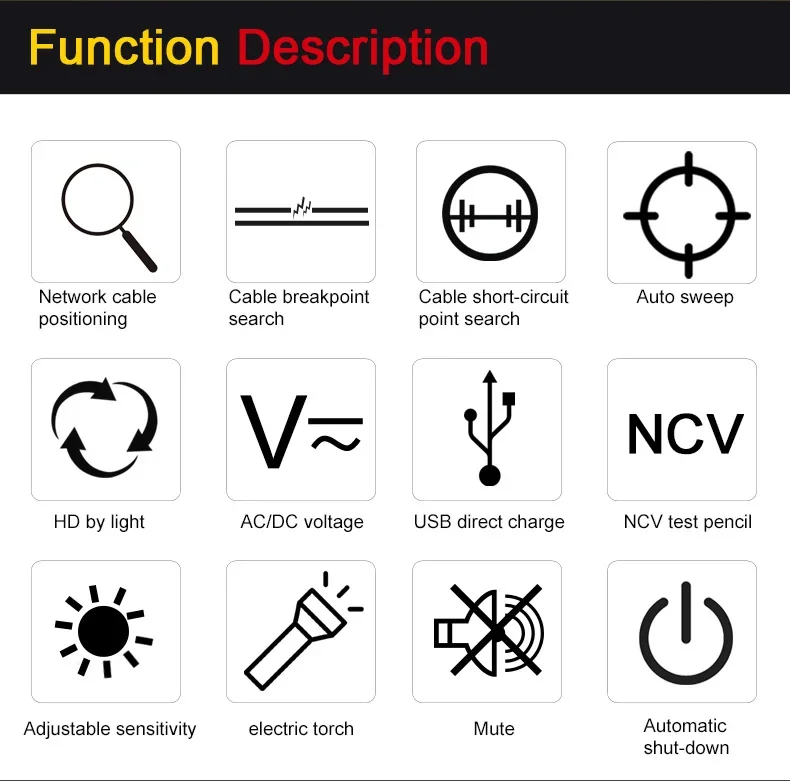

Features :

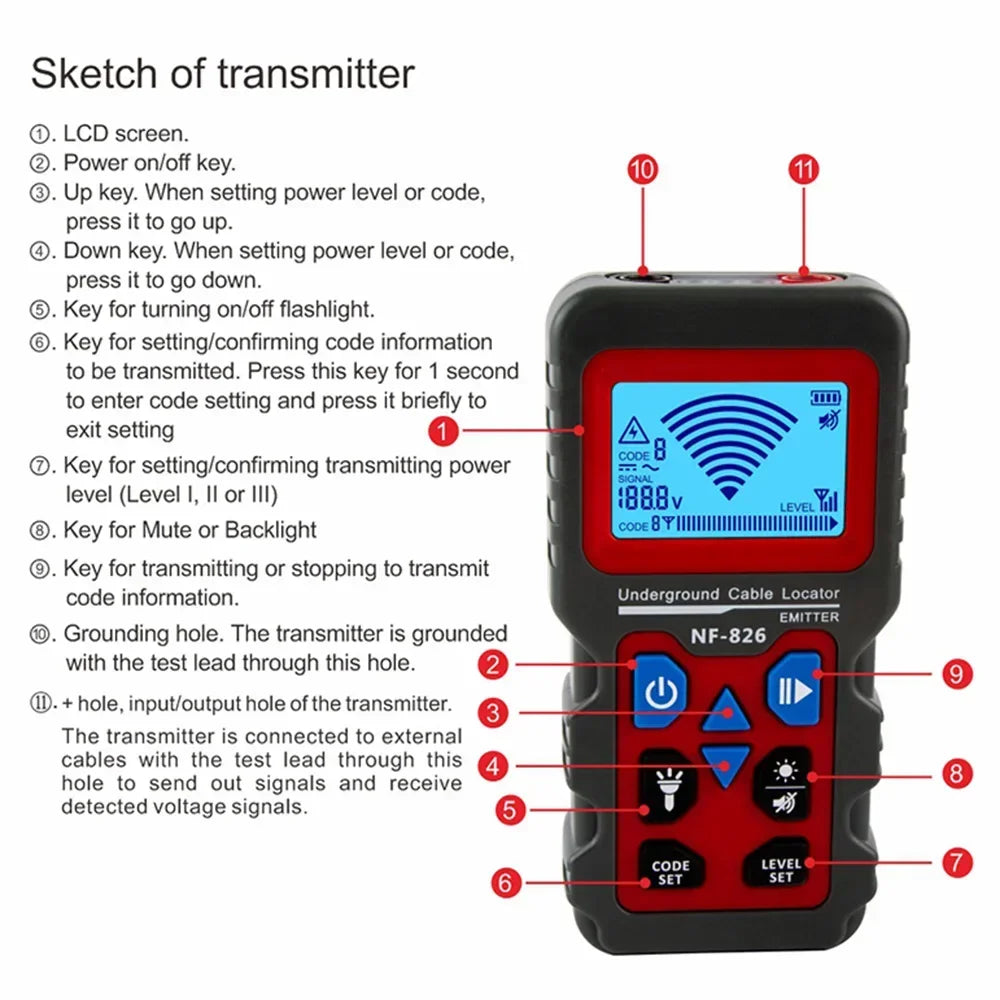

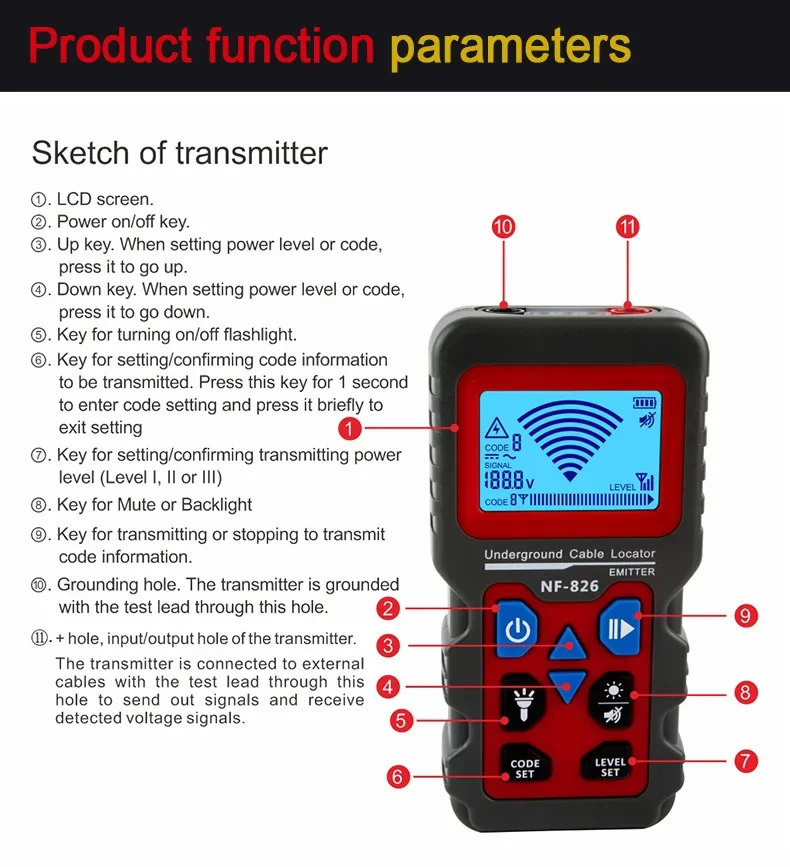

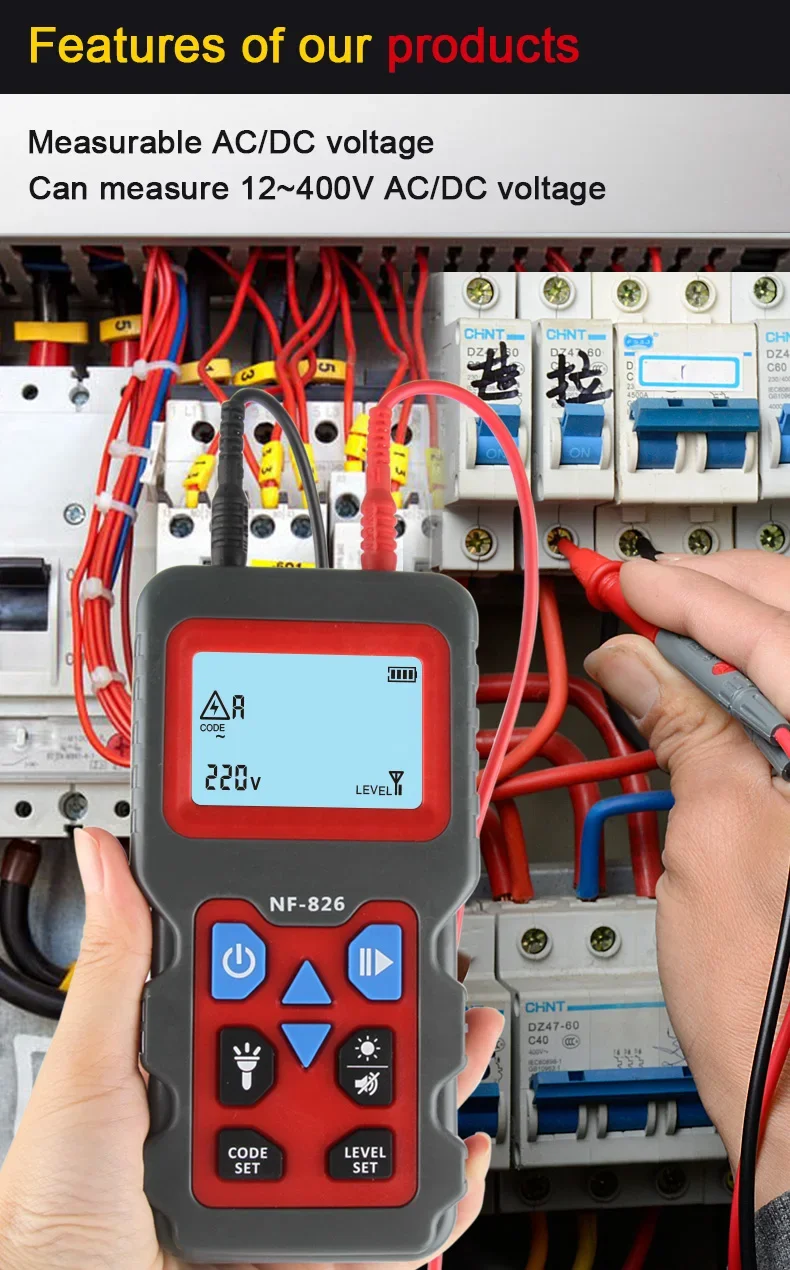

1. The transmitter is integrated with the function of AC/DC voltmeter, which can measure 12 to 400V AC/DC voltage on a linear basis.
2. The screen of the transmitter can display preset transmitting power, transmitted codes-its own battery energy-mains voltage detected-AC/DC status of mains voltage detected-and warning symbol for mains voltage.
3. The Transmitter has the function of self-inspection to detect its own working status and to display it on the LCD screen for user's reference

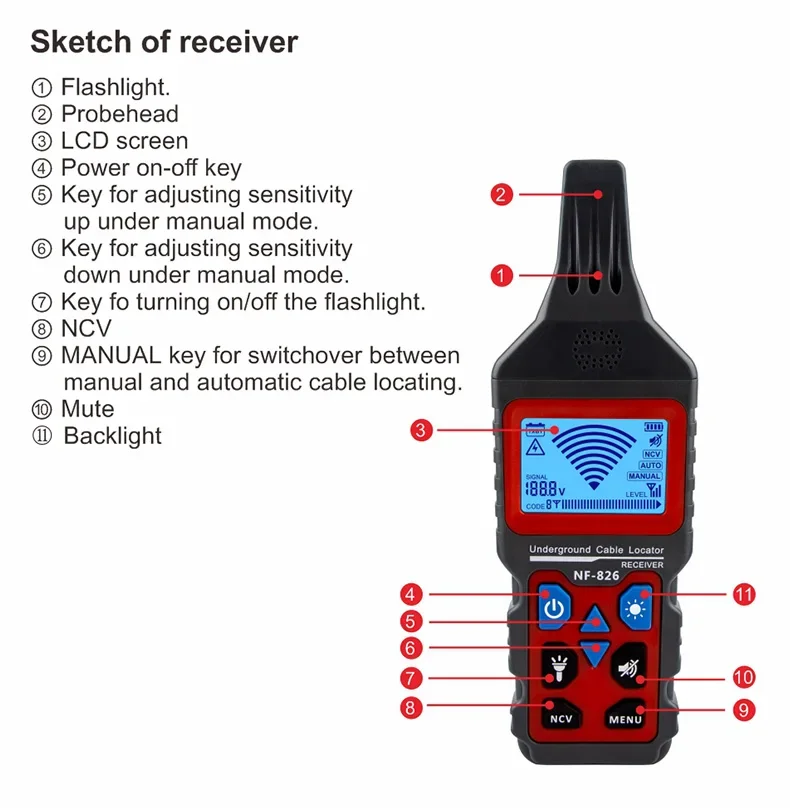

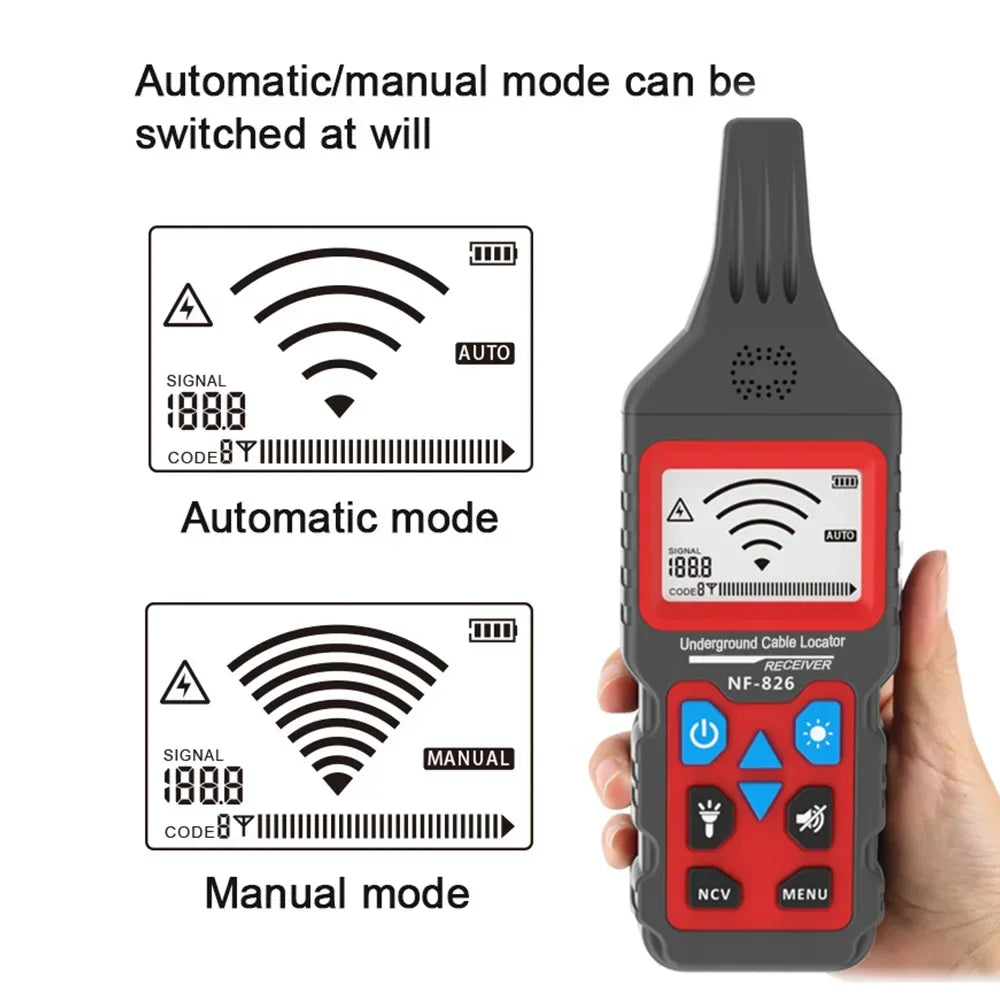

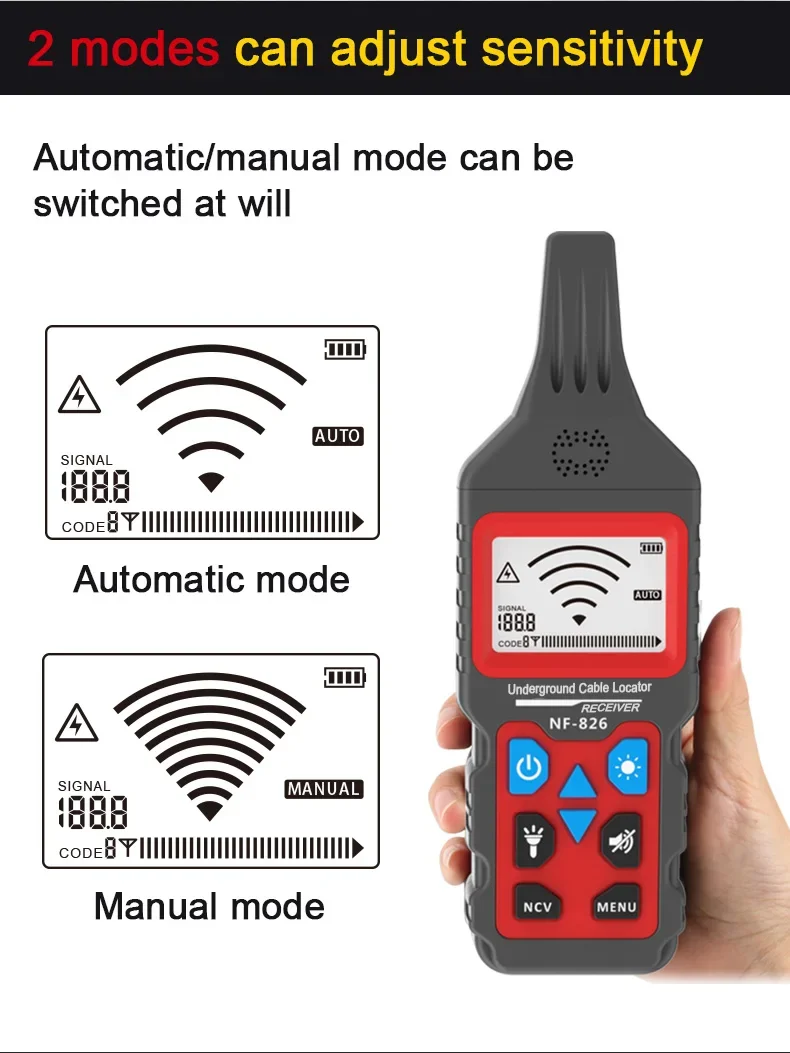

4. The sensitivity of the receiver can be adjusted either manually or automatically
5. The receiver can sweep frequency automatically
6. Both the transmitter and the receiver can work under mute mode

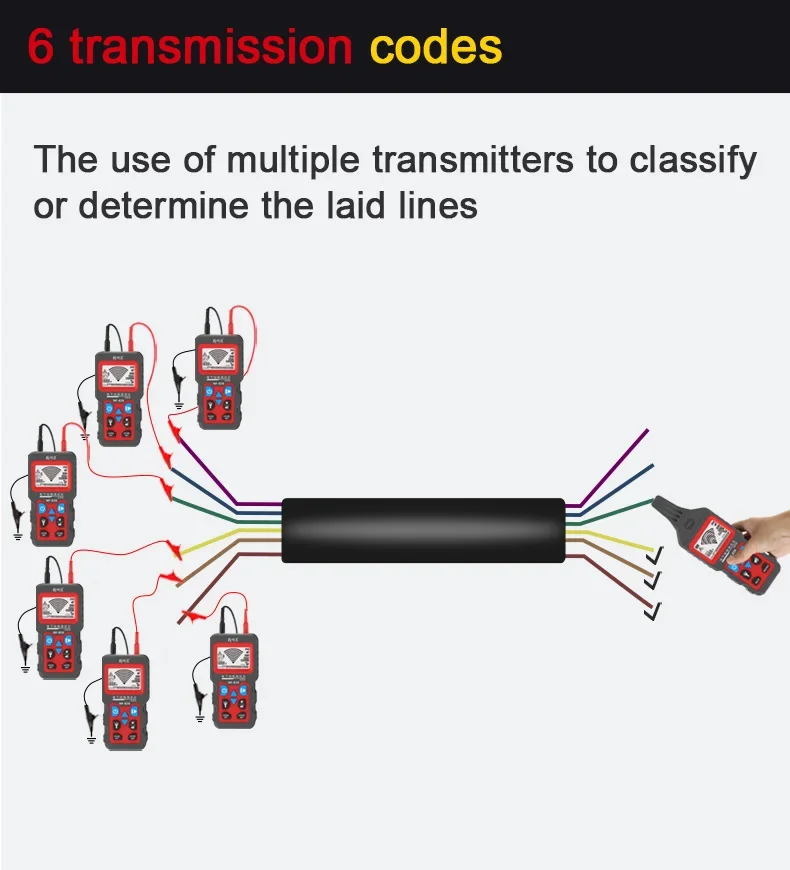

7. Additional transmitters are available to extende or distinguish multiple signals.
8. Compactness-durability and portability
9. Auto power off within 10 minutes.

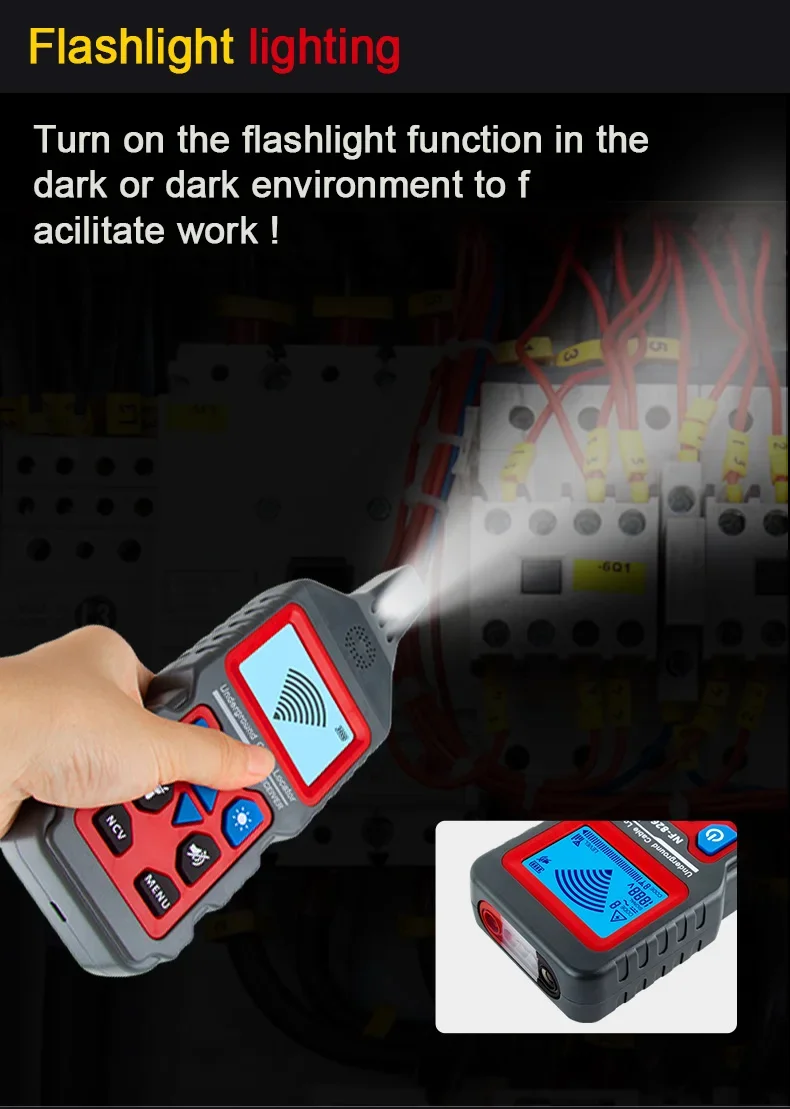

10. Flashlight Function.
11. Backlight Function.
12. Mute Function.
Specification:
Voltage Measurement Range: Transmitter: 12V-400V (AC / DC)
Output Signal: Transmitter: 125KHz
Voltage: Transmitter: maximum 400V (AC / DC)

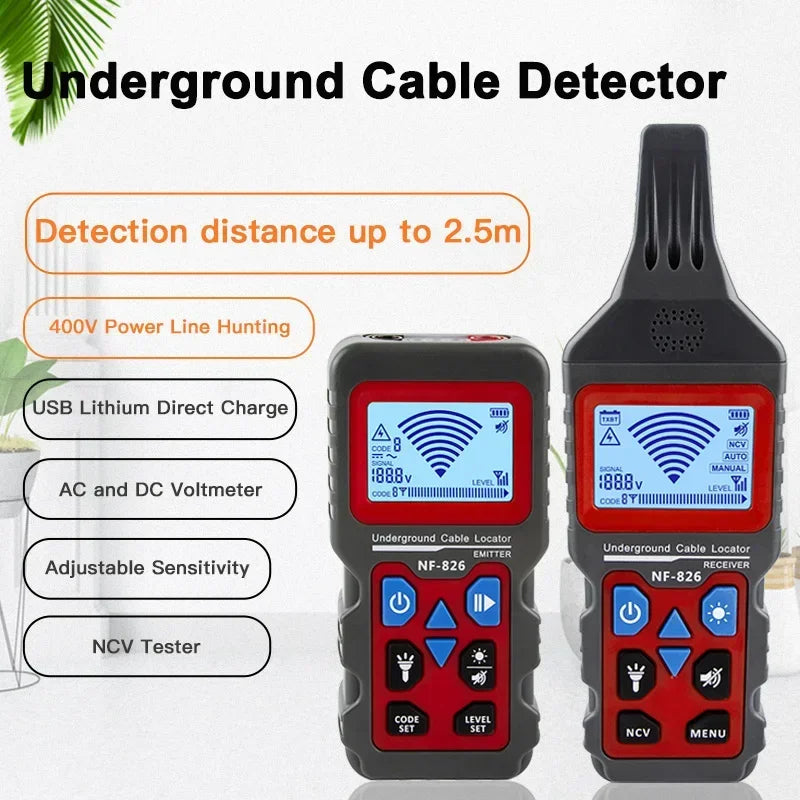

Cable Depth Measurement :Receiver 0-2.5 m (wall / underground cable)
Main Voltage Measurement : Receiver 0-0.4m
Work Environment:Transmitter:0~40℃; Receiver:0~40℃
Storage Temperature: Transimiter:-20℃~60°c; Receiver:-20℃~60℃
Relative hamidity(no condensation):Transmitter Maximum:80%; Receiver Maximum:80%
Measuring Height: Transmitter Maximum:2000m; Receiver Maximum:2000m
Package List:
1*Transmitter
1*Receiver
1*user Manual
2*Alligator Clips (black, red)
2*Test Leads (black, red)
