PCB WITH COMPONENTS 20pcs/lot PCB Prototype Board Circuit Prototboard Universal Stripboard Prototyping Veroboard 2x8 3x7 4x6 5x7 5Pcs Each Mix Green
Specification:

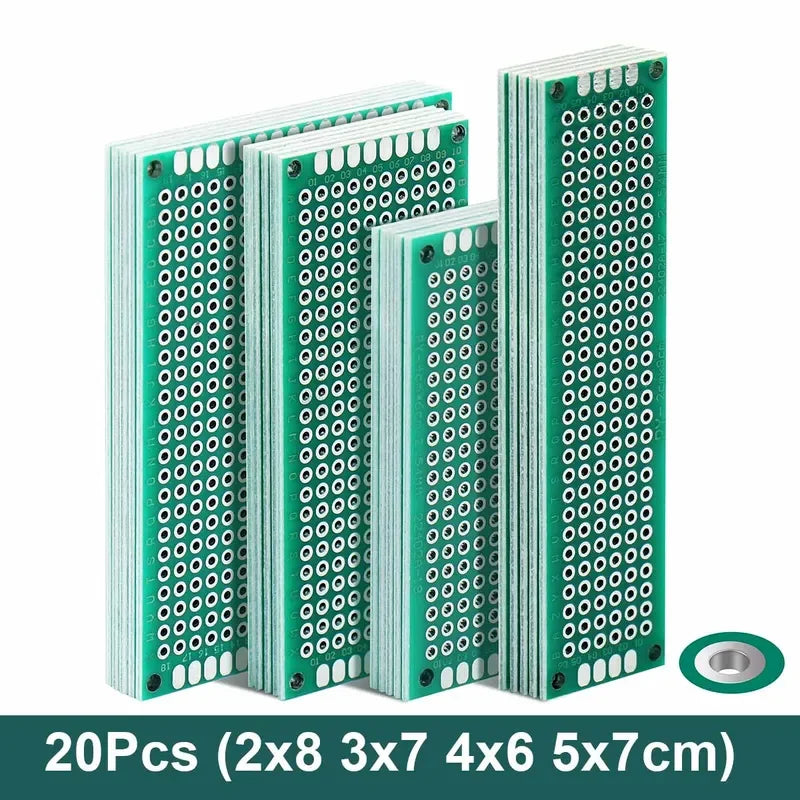

Total 20pcs, each size 5pcs
Grid : 0.1" (2.54mm)
Thickness : 1.6mm
Hole diameter : about 1mm
The diameter of 4 large positioning holes: 4mm
Material : FR-4 (glass fiber)
All holes are plated through
Both sides are identical

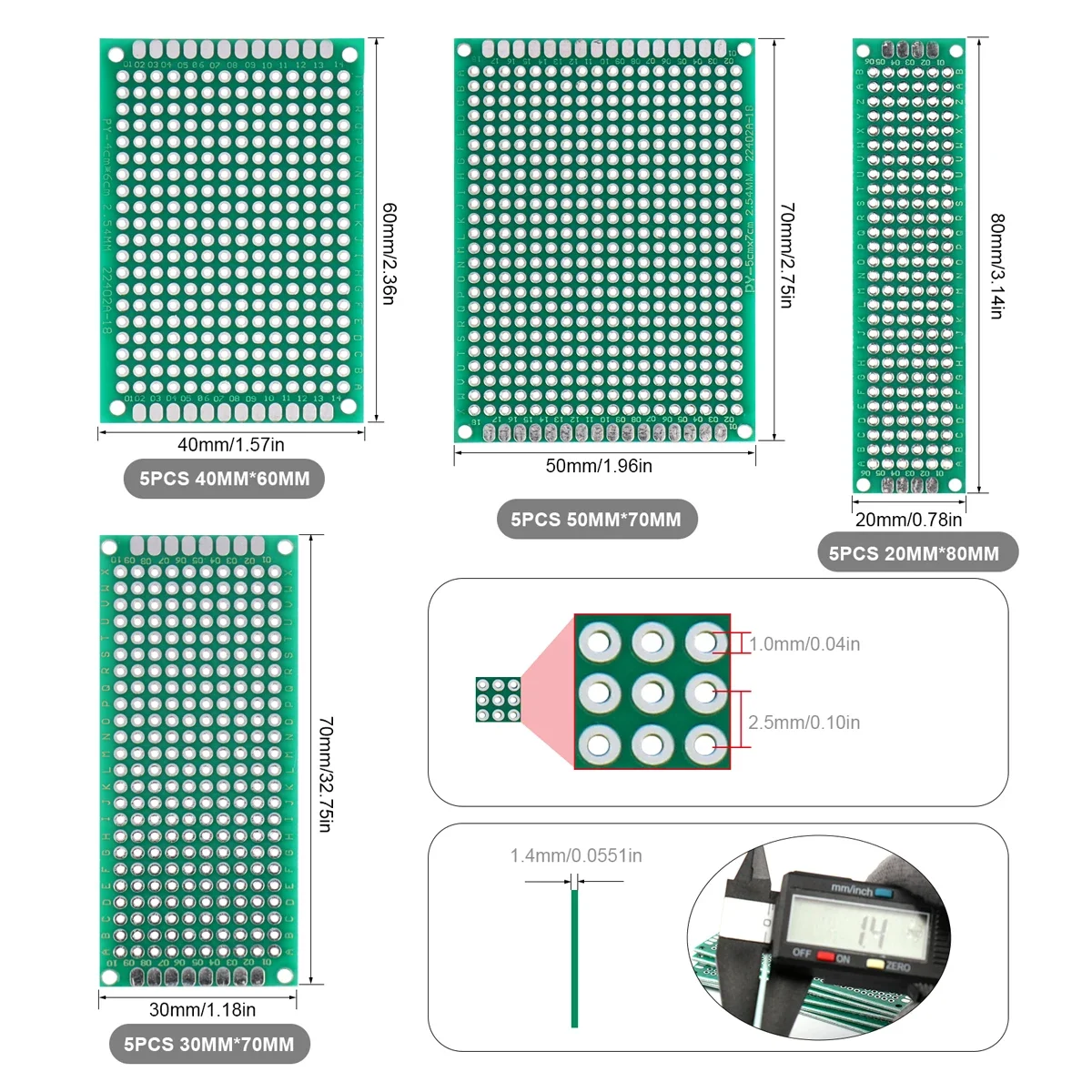

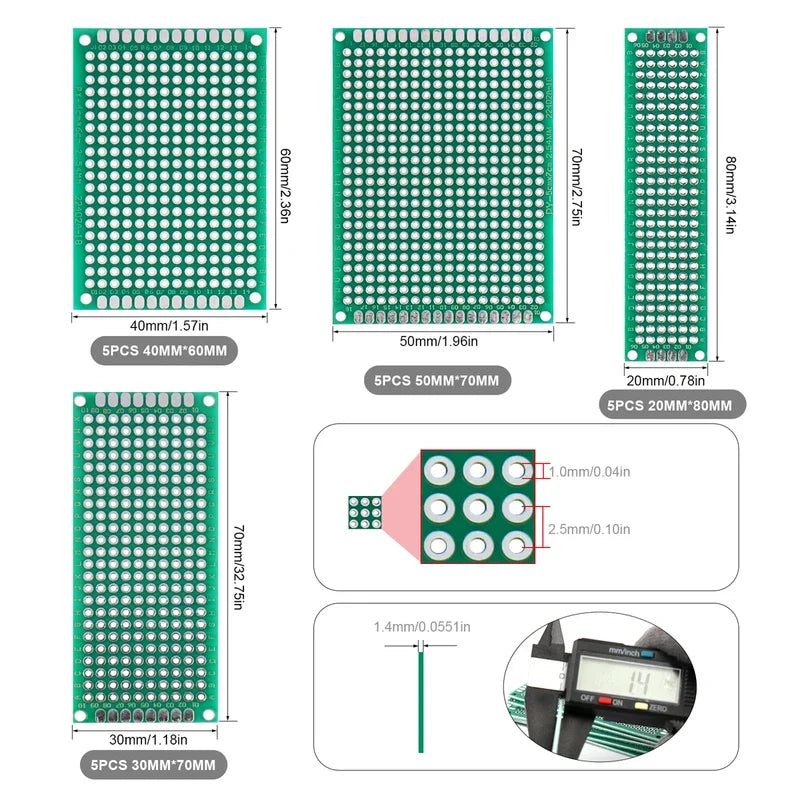

Dimension Hole(column x row) Quantity
50 x 70mm, 1.97" x 2.76" 24 x 18 5
40 x 60mm, 1.57" x 2.36" 20 x 14 5
30 x 70mm, 1.18 x 2.76" 24 x 10 5
20 x 80mm, 0.79" x 3.15" 28 x 6 5

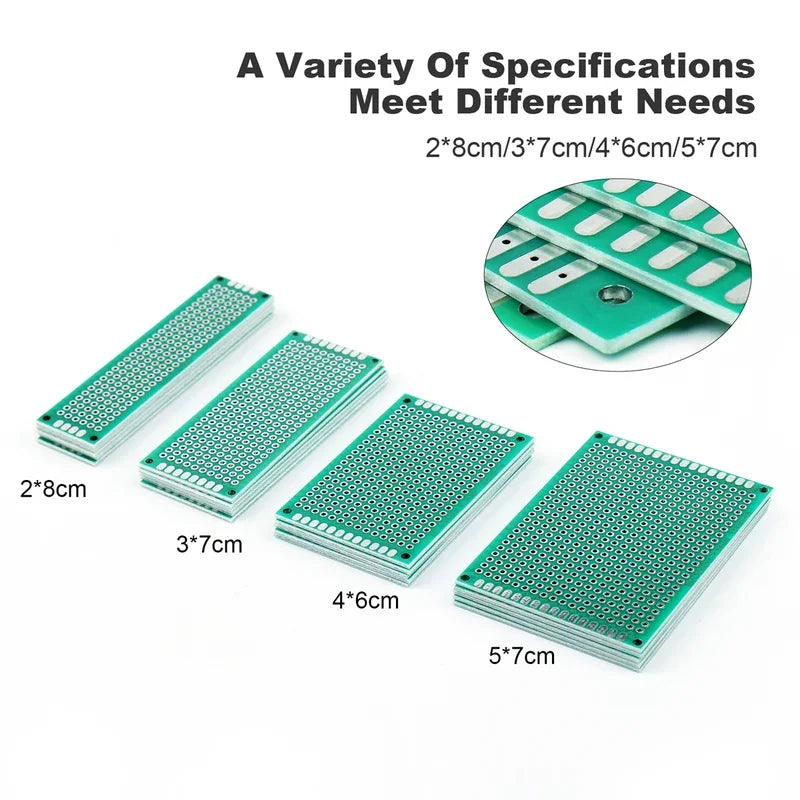

Number of the PCB holes :
2X8CM :6X28=168(holes)
3X7CM : 10X24=240(holes)
4X6CM : 20X14=280(holes)
5X7CM : 18X24=432(holes)
Package included:
20 x FR-4 double side prototype PCB printed circuit board
